The design concept of this landscape street lamp can be elaborated through three core dimensions: cultural inheritance, functional integration, and aesthetic expression, representing a modern interpretation of traditional elements while balancing practicality and artistry.
1. Cultural Inheritance
It deeply integrates Chinese traditional architectural and decorative symbols. The lamp head draws inspiration from ancient palace lanterns, with warm yellow lighting and a metallic frame, recreating the elegance of classical lamps. The decorative patterns on the lamp arm and pole are derived from the “taotie patterns” of Shang and Zhou bronze ware, simplified and presented with modern lines and relief techniques—preserving the solemnity of ancient patterns while avoiding redundancy. The base of the pole resembles the legs of an ancient tripod, enhancing a sense of cultural heritage. This design serves as a “visual anchor” for regional culture, especially suitable for historical districts, ancient cities, and cultural scenic spots, evoking emotional resonance with traditional aesthetics.
2. Functional Integration
Beyond cultural expression, it achieves a dual identity as both a lighting tool and a landscape art installation. The symmetric double-extended lamp arm ensures a wide lighting range while enhancing visual balance. The LED auxiliary lights and the main top lamp form a “primary-secondary lighting system”—the main lamp creates an atmosphere, and the auxiliary lights meet functional lighting needs, outlining an artistic silhouette at night while providing sufficient brightness for pedestrians and vehicles. Made of weather-resistant metal (likely cast aluminum or iron) with an antique bronze finish, it resists outdoor wear and tear while echoing the cultural theme, unifying “appearance” and “durability”.
3. Aesthetic Expression
It emphasizes proportional control and detailed refinement in the modernization of traditional elements. The height (about 10 meters, referenced by the human silhouette on the right) and the span of the lamp arm are carefully calculated, ensuring visual impact without a sense of oppression. The depth of the patterns, the curvature of the lamp arm, and the proportions of the lamp head are all realized through modern industrial design, allowing traditional elements to integrate into modern spaces in a “refined yet not cumbersome” manner. It is suitable for commercial streets, parks, and cultural tourism towns, serving as a landscape carrier with both “cultural identity” and “spatial decorativeness”.
In summary, the design concept is to take tradition as the soul, modernity as the form, and function as the backbone. By extracting ancient architectural symbols and transforming them with modern craftsmanship, it integrates cultural inheritance, landscape creation, and practical lighting, ultimately creating a landscape work that not only illuminates spaces but also tells cultural stories.
Specification Sheet: “Archaic Elegance” Landscape Street Lamp
Product Model: AE-LS100-INT
Product Name: Archaic Elegance Landscape Street Lamp
Target Markets: Southeast Asia, Middle East

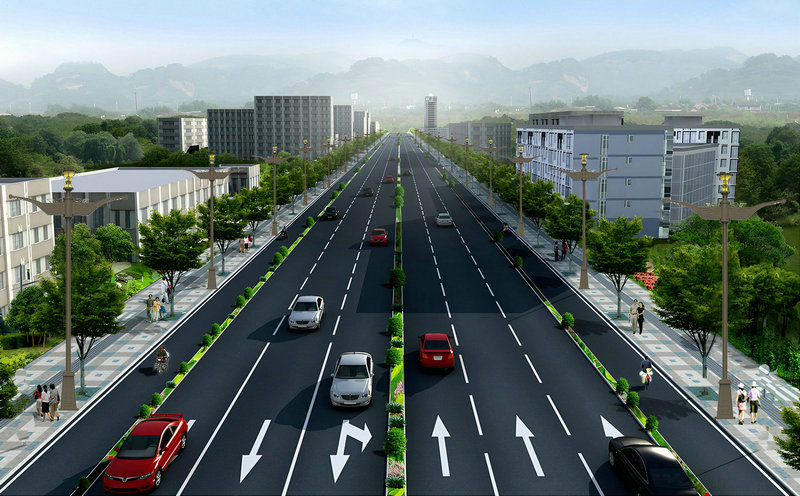

Application Scenarios: Historical districts, cultural scenic spots, luxury commercial streets, cultural tourism towns, municipal roads, high-end residential areas
1. Core Lighting Parameters
| Parameter | Specification |
|---|---|
| Light Source | High-power LED (SMD 5050/3030 chips, high temperature resistance) |
| Rated Power | 100W (Customizable: 50W/70W/120W/150W) |
| Luminous Flux | 12,000 Lumens (±5%) |
| Color Temperature | 3000K (Warm White, cultural atmosphere) / 4000K (Natural White, optional) |
| Color Rendering Index (CRI) | ≥85 (High restoration of architectural details and cultural patterns) |
| Beam Angle | 120° (Wide coverage for open areas) |
| Illumination Range | Effective coverage radius: 15-20m (Single lamp) |
| Lifespan | 50,000 hours (≈13 years under 10 hours/day operation) |
| Dimming Function | Optional: 0-10V dimming / DALI dimming (Energy-saving adjustment) |
| Glare Control | UGR < 19 (Anti-glare design, comfortable for pedestrians & vehicles) |
2. Structural & Material Specifications
| Parameter | Specification |
|---|---|
| Overall Height | 10m (Customizable: 8m/12m/14m) |
| Lamp Pole Diameter | Upper: 60mm / Middle: 114mm / Lower: 165mm (Tapered design, wind-resistant) |
| Lamp Arm Structure | Symmetric double-extended design (Span: 2.5m, stable load-bearing) |
| Lamp Head Dimension | 450mm (L) × 300mm (W) × 280mm (H) |
| Material | – Lamp Pole: High-quality Q235B steel (High strength for harsh winds) |
| – Lamp Head & Decorative Parts: Die-cast aluminum (Corrosion-resistant) | |
| – Decorative Patterns: Iron relief + antique bronze finish (Cultural texture) | |
| Surface Treatment | – Lamp Pole: Hot-dip galvanization (100μm) + Polyester powder coating (Anti-rust, anti-UV) |
| – Decorative Parts: Antique bronze electroplating (Weather-resistant, no fading) | |
| Base Type | Flange base (Size: 400mm × 400mm × 16mm, compatible with standard lamp poles) |
| Net Weight | 85kg (Including pole, lamp head & base) |
| Wind Resistance Grade | ≤14-level (Meets ASTM A500/ASTM A1011 standards, adapted to Middle East/Southeast Asia wind conditions) |
3. Voltage & Electrical Specifications (Market-Adapted)
| Parameter | Specification |
|---|---|
| Rated Voltage | Dual Voltage Design: AC 110V-240V ±10% / 50/60Hz (Universal for Southeast Asia & Middle East) |
| Optional Regional Voltage | – Southeast Asia: AC 220V/50Hz (Indonesia, Malaysia, Thailand, Vietnam) |
| – Middle East: AC 230V/50Hz (UAE, Saudi Arabia, Qatar, Kuwait) | |
| Power Factor (PF) | ≥0.95 (Energy-saving, low power loss) |
| Total Harmonic Distortion (THD) | ≤8% (Stable electrical performance, no interference) |
| Driver Type | IP67 waterproof constant current driver (High efficiency, ≥90%) |
| Short Circuit Protection | Built-in overcurrent/overvoltage/short circuit protection (Automatic power-off when faulty) |
| Surge Protection | 10kV (Lightning protection, adapted to Southeast Asia monsoon & Middle East thunderstorm seasons) |
| Insulation Resistance | ≥2MΩ (IEC 60598 standard, high electrical safety) |
4. Environmental & Protection Performance
| Parameter | Specification |
|---|---|
| Protection Grade | IP66 (Higher waterproof/dustproof than IP65, adapted to heavy rain in Southeast Asia & sandstorms in Middle East) |
| Operating Temperature | -30℃ ~ +75℃ (Wide range, adapted to Middle East high temperature ≥50℃ & Southeast Asia humid heat) |
| Humidity Adaptation | 5% ~ 98% RH (Non-condensing, resistant to Southeast Asia high humidity) |
| Corrosion Resistance | Passed 1500-hour salt spray test (ASTM B117 standard, suitable for coastal areas in Southeast Asia & Middle East) |
| Anti-UV Grade | UV resistance level 5 (Prevents material aging from strong sunlight in target markets) |
| Sandstorm Resistance | Sealed design + dustproof mesh (Adapted to Middle East sandstorm conditions) |
5. Cultural Design & Customization Options
| Feature Category | Details |
|---|---|
| Cultural Elements | – Lamp head: Ancient Chinese palace lantern-inspired shape (Cultural aesthetic) |
| – Decorative patterns: Simplified “Taotie pattern” (Bronze ware cultural symbol, universally recognized) | |
| – Base: Ancient tripod-inspired structure (Enhanced cultural heritage sense) | |
| Customization Options | – Power: 50W-150W adjustable |
| – Color temperature: 3000K/4000K/5000K optional | |
| – Finish color: Antique bronze, matte black, dark gray (Customizable) | |
| – Height: 8m/10m/12m/14m (Adapted to different road widths) | |
| – Dimming: Optional 0-10V/DALI/PLC dimming | |
| – Additional functions: Optional solar-powered version (For remote areas in Southeast Asia/Middle East) |
6. Certifications & Compliance
| Certification Type | Standards & Certifications |
|---|---|
| Safety Certifications | CE (EU), RoHS, SASO (Saudi Arabia), ESMA (UAE), TISI (Thailand), SNI (Indonesia) |
| Quality Standards | IEC 60598 (Lighting fixtures), ASTM A500 (Steel poles), ISO 9001 (Quality management) |
| Environmental Standards | RoHS 2.0 (No heavy metals), ISO 14001 (Environmental management) |
7. Quality Assurance & After-Sales Service
- Warranty Period: 5 years (Free repair/replacement for non-human damage, including LED chips, driver, structural parts, and decorative components)
- After-Sales Support: 24/7 technical consultation (Multilingual: English, Arabic, Bahasa Indonesia)
- On-Site Service: On-site maintenance within 48 hours for key markets (UAE, Saudi Arabia, Malaysia, Thailand); 72 hours for other regions
- Spare Parts: Lifelong supply of replacement parts (LED modules, drivers, decorative patterns) at preferential prices
- Installation Guide: Provide detailed English/Arabic installation manual + video tutorial
Issuing Date: [Insert Date]
Manufacturer: [Insert Company Name]
Contact Information: [Phone] | [Email] | [Website] | [Regional Office Addresses]
This specification sheet is subject to change without prior notice. For the latest version or customized solutions, please contact the manufacturer.
Key Adaptations for Target Markets:
- Voltage Compatibility: Dual voltage (110V-240V) + regional specific options to match Southeast Asia (220V) and Middle East (230V) standards;
- Harsh Environment Resistance: IP66 protection (sandstorm/heavy rain), -30℃~+75℃ operating temperature (high heat/humidity), 1500-hour salt spray test (coastal areas);
- Certifications: Added regional certifications (SASO, ESMA, TISI, SNI) to meet local import requirements;
- Wind Resistance: Upgraded to 14-level to adapt to strong winds in Middle East deserts and Southeast Asia coastal areas;
- After-Sales: Multilingual support + regional on-site service to solve local needs efficiently.
