1. Design Concept
This LED street lamp integrates traditional Chinese architectural elements (bracket sets and spiral patterns) with advanced LED technology. It merges classical craftsmanship aesthetics and modern illumination performance, creating a design-driven fixture that balances cultural heritage and functional efficiency. The detailed structural references to ancient architecture, combined with high-performance LED modules, make it an artistic fusion of tradition and innovation.
2. Name
Heritage Arch LED Street Lamp
3. Core Selling Points
- Cultural Resonance in Southeast Asia: Bracket and spiral patterns align with regional appreciation for oriental heritage, ideal for historical districts, cultural parks, and heritage tourism projects.
- Unique Architectural Design: The classical architectural-inspired silhouette stands out as an urban landmark, enhancing area prestige and attracting visitors.
- High-Efficiency LED Performance: Equipped with premium LED chips, it delivers bright, energy-saving illumination with low maintenance costs, meeting sustainability and operational efficiency goals.
4. Technical Specification Sheet
| Category | Specification Details |
|---|---|
| Product Model | NovaGlow Apex-SL08 |
| Light Source | High-performance LED chips (Cree/Lumileds) with LM-80 certification (75,000-hour lifespan guarantee) |
| Power Options | 120W / 160W / 200W / 260W |
| Input Voltage | AC 85-265V, 50/60Hz (universal compatibility for 110V/220V/230V grids; power factor > 0.97, THD < 7%) |
| Luminous Flux | 120W: 19200lm; 160W: 25600lm; 200W: 32000lm; 260W: 41600lm (tested at 55°C; lumen tolerance ±5%; meets SASO 2927 efficacy standard) |
| Color Temperature | 3000K (warm white) / 4000K (natural white) / 5700K (cool white) – CRI ≥ 80, SDCM ≤ 5; dark-sky compliant (zero up-light) to reduce light pollution |
| Beam Angle | 150°×85° asymmetric “batwing” distribution (uniform illumination ≥0.45 to avoid “zebra effect”); optional 90° narrow beam; Type II/III photometric options available |
| Housing Material | Die-cast aluminum alloy (ADC12) with triple anti-corrosion treatment: hot-dip galvanizing (≥86μm) + epoxy resin + 60μm electrostatic epoxy coating (ISO 4628-2 Class 5); UV-stable 100% |
| Lens Material | 5mm tempered glass (UV-resistant, IK08 impact protection); anti-glare texture to minimize light pollution |
| Protection Rating | IP66 (dustproof/waterproof per IEC 60529); surge protection ±12kV; anti-sand design; sealed cable entry with waterproof connectors; wind resistance ≥11 级 |
| Operating Temperature | -40°C to +65°C (stable operation at 55°C+ ambient temperature); storage temperature: -50°C to +80°C; passes 95% RH 双 85 湿热测试 |
| Lifespan | ≥75,000 hours (L70 standard per IES TM-21); 3000h 光通维持率≥98%, 6000h≥95%; 5-year warranty (covers parts, labor, light decay ≤30% at 55°C) |
| Heat Dissipation | Integrated finned housing + graphene-enhanced thermal pad (thermal resistance <1.2°C/W); surface temperature ≤75°C under full load; ISTMT tested for 50°C component 温升 |
| Dimming & Control | Compatible with DALI-2, DMX512, Bluetooth, Wi-Fi, 4G IoT; optional dusk-to-dawn photocell + remote fault monitoring; programmable dimming (0-100%) with energy-saving modes |
| Certifications | TISI (Thailand 2025), SIRIM (Malaysia MS IEC 60598 + Malay labels), SNI (Indonesia local lab), Vietnam CR/STAMEQ, GCC G-Mark, SABER (Saudi), ESMA (UAE), CE, RoHS (GSO), ISO 17025-tested |
| Physical Dimensions | 120W: 560×380×240mm; 160W: 630×420×260mm; 200W: 700×460×280mm; 260W: 770×500×300mm |
| Net Weight | 120W: 9.8kg; 160W: 11.6kg; 200W: 13.4kg; 260W: 15.2kg |
| Installation Type | Adjustable bracket (0-60° tilt angle); compatible with 6-22m lamp poles (60/76/89/100mm diameter); quick-connect wiring; solar power system compatible (12V/24V DC optional, LiFePO4 电池适配) |

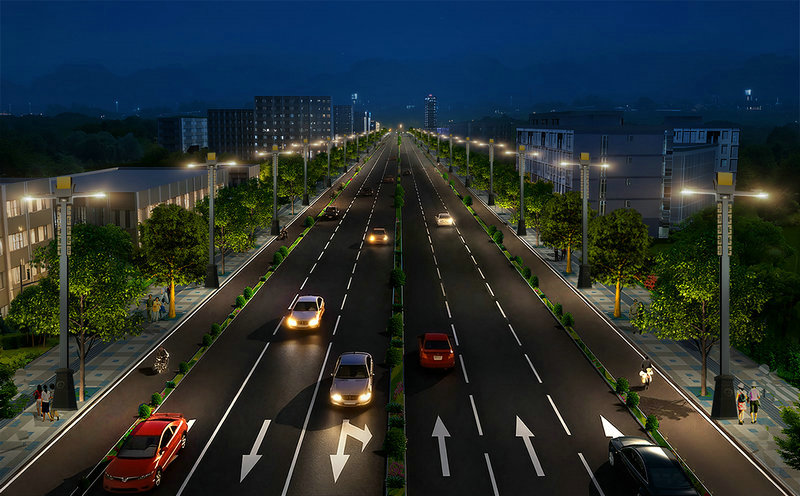

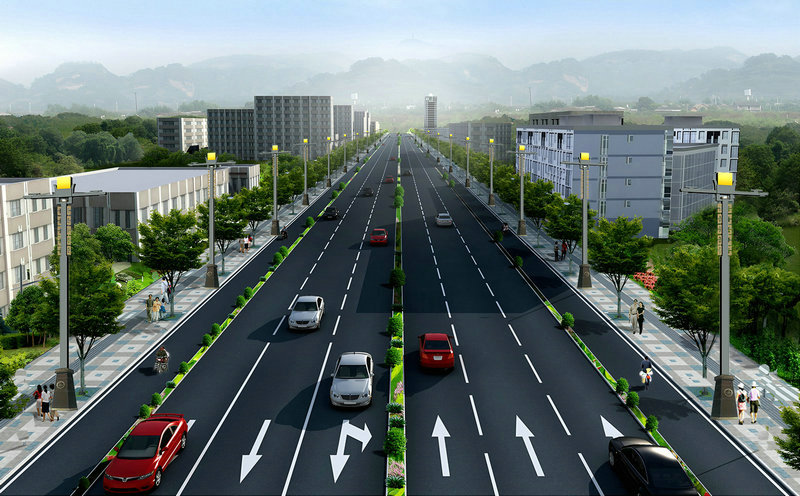

| Application Scenarios | Urban roads, municipal projects, coastal resorts, desert cities, smart cities, mosque complexes, industrial zones, Thailand BOI-certified solar projects, Philippines LGU infrastructure |
| Compliance Standards | IEC 60598-2-3, IEC 61000, CISPR 15, ASTM D3359, SASO 2927, SIRIM MS IEC 60598, Vietnam STAMEQ, GCC GSO 3137, dark-sky compliant (UGR < 18) |
| Packaging & Labeling | Multilingual labels (English/Arabic/Thai/Vietnamese/Indonesian/Malay) with mandatory certifications; 100% recyclable packaging; includes local language manuals, certification docs, 304 不锈钢 fasteners, local agent contacts |
| Environmental Impact | Mercury-free, lead-free (RoHS compliant); 不含 Phthalates/PVC; 82% energy savings vs. sodium lamps; reduces CO2 emissions by ~450kg/year; design for disassembly (Malaysia 2025 WEEE compliant) |
