Symmetry LED Street Sculptor

LED street light

  1. Design Concept：

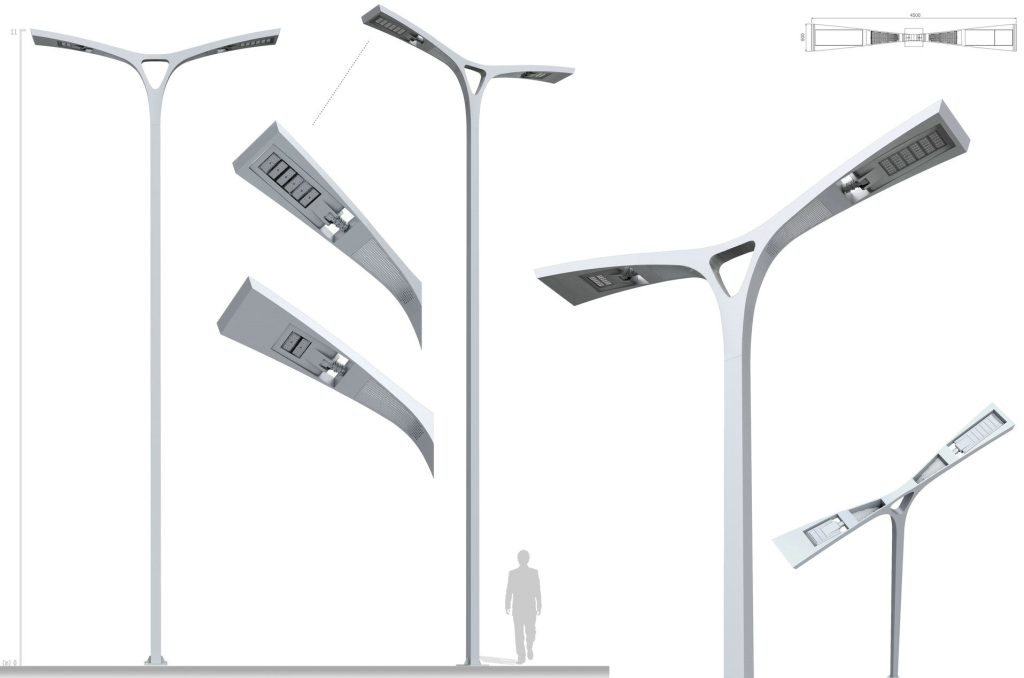

    This LED street lamp boasts a sleek, Y – shaped architectural design, integrating modern aesthetics with engineering sophistication. It transcends the role of a mere lighting device, serving as an urban art installation. By combining high – efficiency LED technology, it emphasizes structural symmetry and modularity, achieving a perfect balance between visual elegance and functional adaptability, thus becoming an outstanding option for modern city landscapes.
  2. Name：
    Symmetry LED Street Sculptor
  3. Core Selling Points
    • Architectural Artistry: The unique Y – shaped structure injects artistic charm into urban areas, enhancing the city’s visual identity while ensuring stable lighting.
    • Modular Convenience: With detachable and modular lamp heads, it enables effortless maintenance and component replacement, lowering long – term operational costs.
    • Dual – Region Durability: It is engineered to resist the extreme climates of Southeast Asia (high humidity and heat) and the Middle East, guaranteeing long – lasting performance and durability.

4. Technical Specification Sheet

CategorySpecification Details
Product ModelEcoGlow Arc-SL02
Light SourceHigh-performance LED chips (Epistar/Puri) with LM-80 certified lifespan
Power Options60W / 100W / 140W / 180W
Input VoltageAC 90-265V, 50/60Hz (universal compatibility for Southeast Asia/Middle East, adapting to Vietnam 120/220V, Malaysia 230V, Saudi Arabia 127/220V)
Luminous Flux60W: 7800lm; 100W: 13000lm; 140W: 18200lm; 180W: 23400lm (meets LTA’s 130lm/W efficacy requirement)
Color Temperature3000K (warm white) / 4000K (natural white) / 5700K (cool white) – CRI ≥ 75 for true color rendering; 4000K max to reduce light pollution (compliant with Singapore LTA)
Beam Angle140°×70° asymmetric distribution (optimized for road lighting); customizable 90° narrow beam for landscapes
Housing MaterialDie-cast aluminum alloy (ZL105) with electrostatic powder coating (WF2 corrosion resistance, passes 1000-hour salt spray test per ISO 9227)
Lens Material5mm high-strength tempered glass (UV-resistant, impact-resistant IK10 rating)
Protection RatingIP68 (waterproof/dustproof); IK10 impact resistance; surge protection ±6kV
Operating Temperature-30°C to +65°C (adapts to Middle East desert heat and Southeast Asia mountain cold)
Lifespan≥60,000 hours (L70 standard per IES TM-21); 5-year warranty with light decay ≤30%
Heat DissipationIntegrated finned housing + copper heat pipe system (thermal resistance <2.0°C/W) – prevents overheating in 45°C+ tropical environments
Dimming & ControlCompatible with DMX512/Bluetooth smart control (optional); supports dusk-to-dawn photocell sensor and remote fault monitoring (compatible with Singapore smart city protocols)
CertificationsTISI (Thailand), SIRIM (Malaysia), SNI (Indonesia), CR (Vietnam), GCC G-Mark, CE, RoHS, LTA-registered (Singapore)
Physical Dimensions60W: 420×250×180mm; 100W: 490×290×200mm; 140W: 560×330×220mm; 180W: 630×370×240mm
Net Weight60W: 5.1kg; 100W: 6.8kg; 140W: 8.5kg; 180W: 10.2kg
Installation TypeAdjustable bracket (0-45° tilt angle); compatible with 6-15m lamp poles (standard 60/76mm diameter); quick-connect wiring for easy installation
Application ScenariosUrban roads, municipal projects, resorts, coastal areas, smart city infrastructure, mosque complexes (适配斋月节庆照明需求)
Compliance StandardsEN 13201 (optical performance), IEC 60598-2-3 (safety), CISPR 15 (EMC), Vietnam STAMEQ energy efficiency, Singapore SS IEC 60598-2-3
Packaging & LabelingEnglish/Arabic bilingual labels; includes installation manual, certification documents, and corrosion-resistant mounting hardware; meets GCC labeling requirements
