1. Design Concept

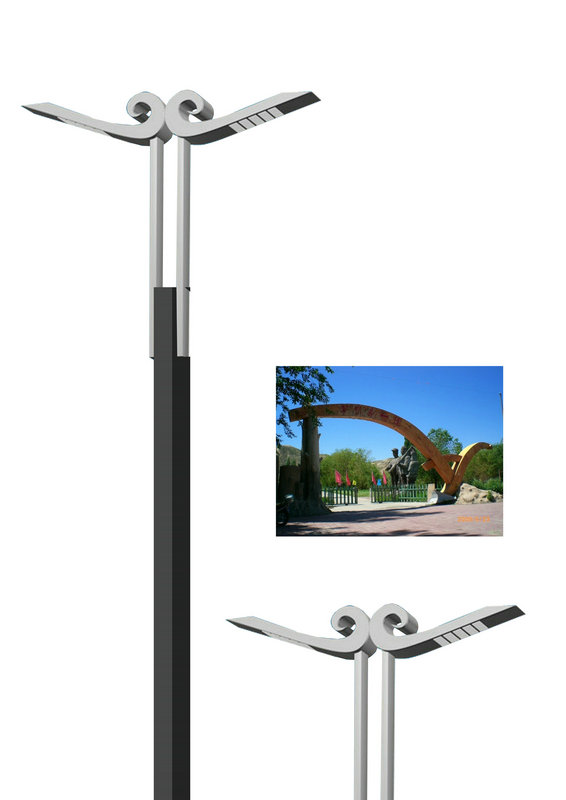

This LED street lamp features a distinctive Y-shaped streamlined structure, integrating modern minimalist design with regional landscape elements. It merges artistic aesthetics and advanced LED technology, creating a design-driven fixture that balances visual uniqueness and functional illumination. The symmetrical lines and integrated LED modules make it a creative fusion of urban art and energy-efficient lighting.
2. Name
Stream Y LED Street Lamp
3. Core Selling Points
- Cultural & Design Fusion: The Y-shaped structure with regional landscape inspiration enhances cultural identity in Southeast Asian urban areas, ideal for tourist zones and cultural districts.
- Modern Aesthetic Appeal: Its sleek, streamlined silhouette injects modernity into cityscapes, fitting commercial hubs and contemporary development projects.
- High-Efficiency LED Performance: Equipped with dual-end LED modules, it delivers bright, energy-saving illumination with low maintenance costs, meeting sustainability goals in Southeast Asia.
4. Technical Specification Sheet
| Category | Specification Details |
|---|---|
| Product Model | AeroShield Pro-SL09 |
| Light Source | High-performance LED chips (Cree/Lumileds) with LM-80 certification (75,000-hour lifespan guarantee) |
| Power Options | 130W / 170W / 210W / 270W |
| Input Voltage | AC 85-265V, 50/60Hz (universal compatibility for 110V/220V/230V grids; power factor > 0.97, THD < 7%) |
| Luminous Flux | 130W: 20800lm; 170W: 27200lm; 210W: 33600lm; 270W: 43200lm (tested at 55°C; lumen tolerance ±5%; meets SASO 2927 Class A+ efficiency) |
| Color Temperature | 3000K (warm white) / 4000K (natural white) / 5700K (cool white) – CRI ≥ 80, SDCM ≤ 5; dark-sky compliant (zero up-light) to reduce light pollution; 3000W ideal for night markets and commercial areas |
| Beam Angle | 150°×85° asymmetric “batwing” distribution (uniform illumination ≥0.45 to avoid “zebra effect”); optional 90° narrow beam; Type II/III photometric options available |
| Housing Material | 6063-T5 aluminum alloy with triple anti-corrosion treatment: 1) hot-dip galvanizing (≥86μm); 2) epoxy resin middle layer; 3) outdoor-grade polyester powder coating (60μm thickness, ISO 4628-2 Class 5); WF2 corrosion resistance |
| Lens Material | 5mm tempered glass (UV-resistant, IK09 impact protection); anti-glare texture to minimize light pollution and ensure visual comfort |
| Protection Rating | IP66 (dustproof/waterproof per IEC 60529); surge protection ±12kV; anti-sand design for desert environments; sealed cable entry with waterproof connectors; wind resistance ≥10 级 |
| Operating Temperature | -40°C to +65°C (stable operation at 55°C+ ambient temperature); storage temperature: -50°C to +80°C; passes 95% RH 双 85 湿热测试 |
| Lifespan | ≥75,000 hours (L70 standard per IES TM-21); 3000h light maintenance rate ≥98%, 6000h ≥95%; 5-year warranty (covers parts, labor, and light decay ≤30% at 55°C) |
| Heat Dissipation | Integrated finned housing + graphene-enhanced thermal pad (thermal resistance <1.2°C/W); surface temperature ≤75°C under full load; optimized for high-temperature desert environments |
| Dimming & Control | Compatible with DALI-2, DMX512, Bluetooth, Wi-Fi, and 4G IoT smart control; optional dusk-to-dawn photocell sensor and remote fault monitoring; programmable dimming (0-100%) with night market energy-saving mode |
| Certifications | TISI (Thailand 2025), SIRIM (Malaysia MS IEC 60598 + Malay labels), SNI (Indonesia local lab), Vietnam CR/STAMEQ, GCC G-Mark, SABER (Saudi), ESMA (UAE), CE, RoHS (GSO compliant), ISO 17025-tested |
| Physical Dimensions | 130W: 580×400×250mm; 170W: 650×440×270mm; 210W: 720×480×290mm; 270W: 790×520×310mm |
| Net Weight | 130W: 10.5kg; 170W: 12.3kg; 210W: 14.1kg; 270W: 15.9kg |
| Installation Type | Adjustable bracket (0-60° tilt angle); compatible with 6-22m lamp poles (60/76/89/100mm diameter); quick-connect wiring for easy on-site assembly; solar power system compatible (12V/24V DC optional, LiFePO4 battery compatible) |

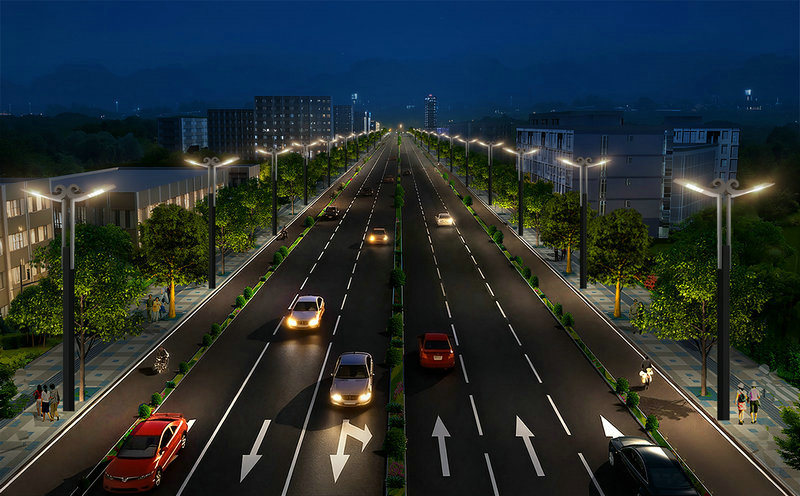

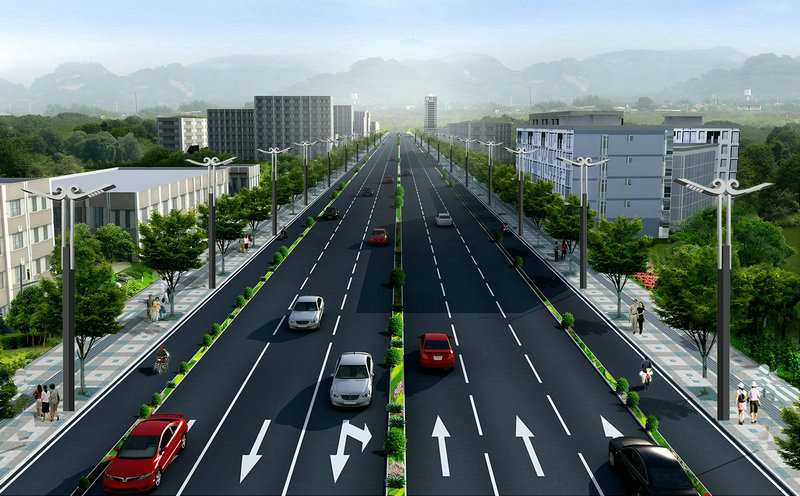

| Application Scenarios | Urban roads, municipal projects, coastal resorts, desert cities, smart cities, mosque complexes, industrial zones, night markets, Vietnam solar subsidy projects, Philippines LGU infrastructure, Indonesian underserved areas |
| Compliance Standards | IEC 60598-2-3, IEC 61000, CISPR 15, ASTM D3359, SASO 2927, SIRIM MS IEC 60598, Vietnam STAMEQ, GCC GSO 3137, dark-sky compliant (UGR < 18) |
| Packaging & Labeling | Multilingual labels (English/Arabic/Thai/Vietnamese/Indonesian/Malay) with mandatory certification marks; 100% recyclable packaging; includes local language installation manuals, certification documents, 304 stainless steel fasteners, and local agent contact information |
| Environmental Impact | Mercury-free, lead-free (RoHS compliant); Phthalates/PVC-free; 82% energy savings vs. sodium lamps; reduces CO2 emissions by ~480kg per fixture annually; design for disassembly (compliant with Malaysia’s 2025 WEEE regulation) |
