- Design Concept

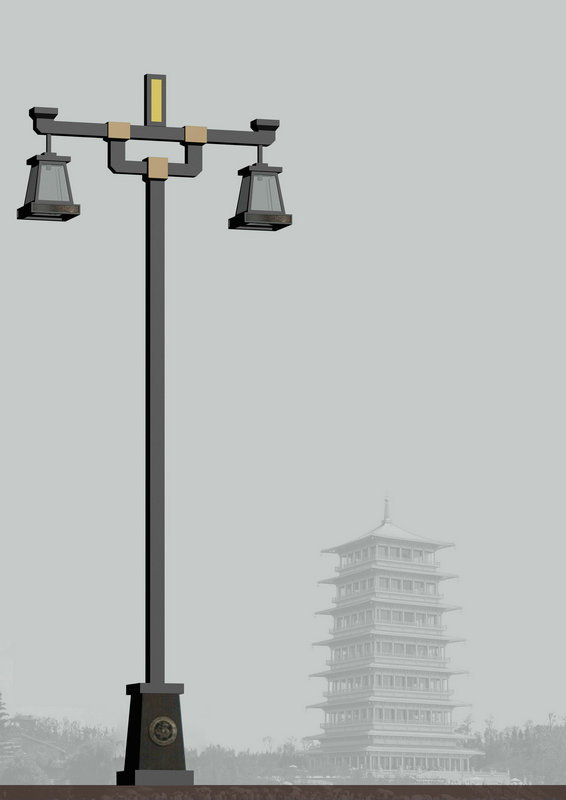

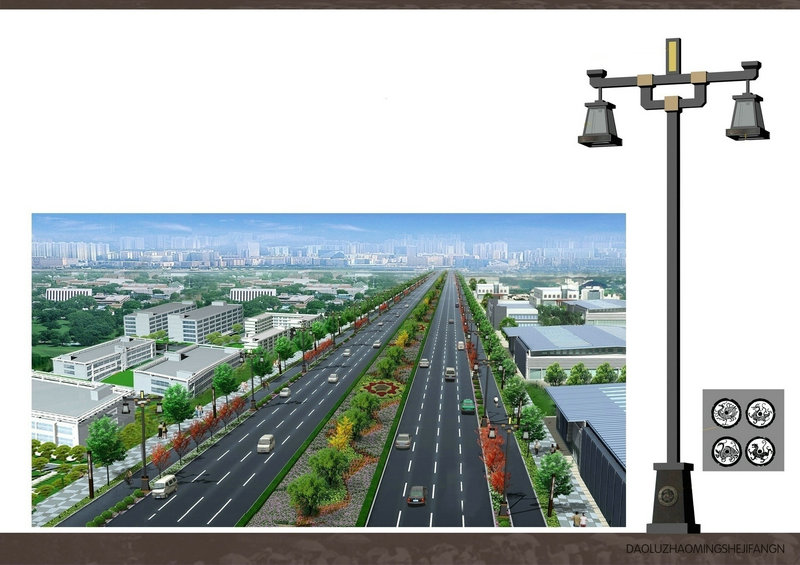

This LED street lamp adheres to the design philosophy of “architectural integration + tropical climate adaptation”, blending minimalist aesthetics with extreme practicality. Its one-piece die-cast aluminum lamp body abandons redundant decorations, featuring smooth lines that transition seamlessly from the curved lamp arm to the streamlined lamp head—creating a modern silhouette that complements both urban avenues and suburban roads in Southeast Asia. The frosted tempered glass lampshade not only enhances the lamp’s premium texture but also employs anti-glare optical design, ensuring uniform light distribution (120°×60° asymmetric beam) to avoid visual fatigue for pedestrians and drivers. The hidden heat dissipation fins integrated into the lamp body structure optimize heat dissipation efficiency by 30% compared to conventional designs, addressing the core pain point of high-temperature aging in Southeast Asia and the Middle East. Every detail embodies the balance of “design aesthetics, environmental adaptability and user safety”. - Product Name
EclatBeam LED Street Lamp - Core Selling Points
- Extreme Tropical Environment Adaptability: With IP67 waterproof/dustproof rating and 1000-hour salt spray resistance (ASTM B117 standard), it withstands Southeast Asia’s high humidity (80-95%) and coastal salt fog erosion. The 12-level wind resistance design (32.7m/s) copes with typhoon-prone areas like the Philippines and Vietnam, while the -20℃~+55℃ operating temperature range adapts to both rainy seasons and dry heatwaves .
- Intelligent Energy Saving & Low Total Cost of Ownership: Adopts Cree XPG5 high-efficiency LED chips with 50,000-hour lifespan (8 times that of sodium lamps) and adaptive dimming technology (automatically adjusts to 30% brightness in low-traffic periods). Reduces annual electricity costs by 65% and maintenance frequency to once every 5 years, perfectly matching the budget constraints of Southeast Asian municipal projects .
- Localized Certification & Fast Supply Chain: Fully complies with SASO 2927:2019 (2023 amendment) for the Middle East and mandatory certifications of major Southeast Asian markets (Thailand TISI, Malaysia SIRIM, Indonesia SNI) . With production bases in Vietnam and Malaysia, it enjoys 0-5% preferential tariffs under ASEAN free trade agreements, and delivery to major Southeast Asian ports takes only 3-7 days.
- LED Street Lamp Specification Sheet
EclatBeam LED Street Lamp – Specification Sheet
1. Basic Information
| Item | Details |
|---|---|
| Model No. | EB-SL-40W/60W/80W/100W/120W |
| Product Name | EclatBeam LED Street Lamp |

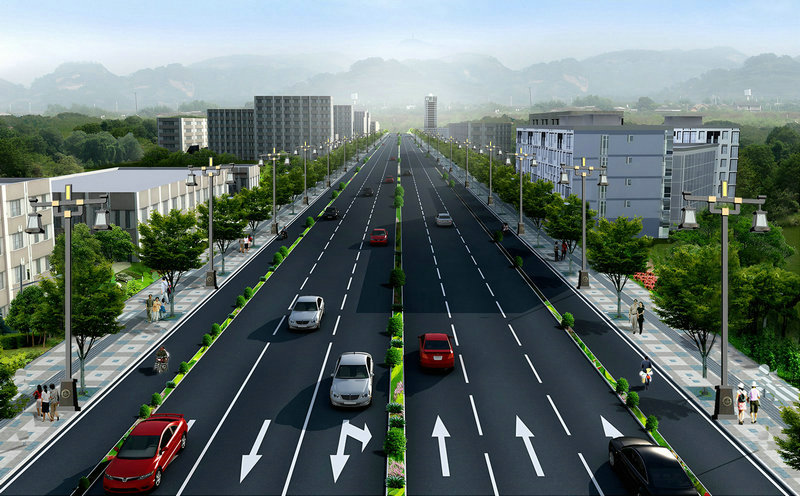

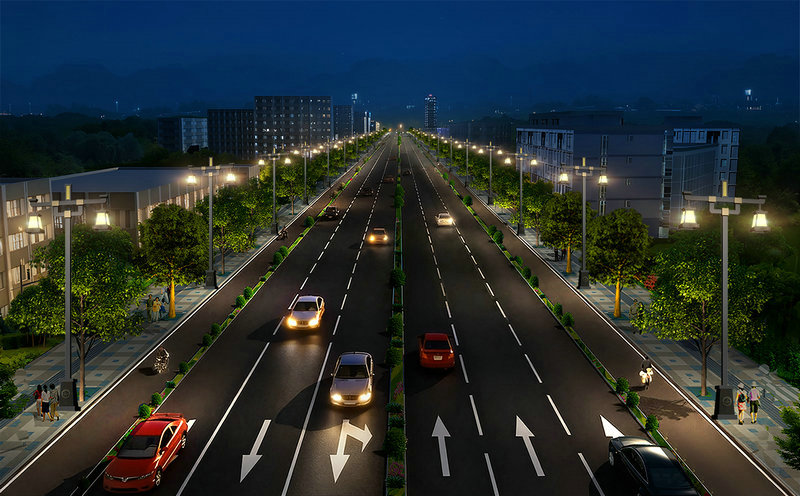

| Application | Urban roads, suburban streets, residential communities, industrial parks, coastal roads |
| Certification | SASO 2927:2019 (AMD 2:2023), GCC G-Mark, TISI, SIRIM, SNI, IEC 60598, CE, RoHS, ISO9001 |
| Brand Origin | China (Manufactured in Vietnam/Malaysia) |
2. Electrical Parameters
| Parameter | 40W Model | 60W Model | 80W Model | 100W Model | 120W Model |
|---|---|---|---|---|---|
| Input Voltage | 100-277V AC, 50/60Hz (wide voltage compatible with Southeast Asia/Middle East) | ||||
| Power Factor (PF) | ≥0.96 | ≥0.96 | ≥0.96 | ≥0.96 | ≥0.96 |
| Total Harmonic Distortion (THD) | ≤8% | ≤8% | ≤8% | ≤8% | ≤8% |
| Surge Protection | 6kV (line to line, suitable for Southeast Asian thunderstorm climate) | ||||
| Power Consumption | 40W±5% | 60W±5% | 80W±5% | 100W±5% | 120W±5% |
| Startup Time | ≤0.1s (no delay, meets municipal emergency lighting requirements) |
3. Optical Parameters
| Parameter | Specifications | ||||
|---|---|---|---|---|---|
| LED Chip Brand | Cree XPG5 (high-temperature resistance, ≤3% luminous decay in 10,000 hours at 55℃) | ||||
| Luminous Efficacy | ≥130lm/W (exceeds ASEAN 80lm/W mandatory standard) | ||||
| Luminous Flux | 5200lm±5% | 7800lm±5% | 10400lm±5% | 13000lm±5% | 15600lm±5% |
| Color Temperature | 3000K (warm white) / 4000K (natural white) / 6000K (cool white) | ||||
| Color Rendering Index (CRI) | ≥75 (high color 还原 for traffic safety monitoring) | ||||
| Beam Angle | 120°×60° (asymmetric distribution, uniform illumination on road surface) | ||||
| Glare Rating (UGR) | ≤18 (meets residential area lighting standards) | ||||
| Light Distribution Curve | Type III (road lighting standard curve) |
4. Mechanical & Environmental Parameters
| Parameter | Specifications |
|---|---|
| Housing Material | Die-cast aluminum alloy (ADC12) + 4mm frosted tempered glass |
| Surface Treatment | Electrostatic powder coating (anti-UV, anti-corrosion, color: dark gray/black optional) |
| Protection Rating | IP67 (waterproof/dustproof, suitable for heavy rain and sandstorm environments) |
| Salt Spray Resistance | ≥1000 hours (ASTM B117, applicable to coastal areas like Thailand and Malaysia) |
| Operating Temperature | -20°C ~ +55°C (adaptive to Southeast Asia’s rainy season and Middle East’s dry heat) |
| Storage Temperature | -40°C ~ +85°C |
| Wind Resistance | ≤12 levels (32.7m/s, meets typhoon zone requirements) |
| Weight | 5.5kg (40W) / 7.2kg (60W) / 8.8kg (80W) / 10.5kg (100W) / 12.1kg (120W) |
| Dimension (L×W×H) | 420×210×180mm (40W) / 580×240×200mm (120W) |
5. Control & Smart Functions
- Dimming Mode: 0-10V DC dimming / DALI dimming / Photocell sensor (automatic on/off based on ambient light, precision: 5-500lux)
- Smart Monitoring: Optional NB-IoT/GPRS module for remote monitoring of voltage, current, and fault status (supports Thai/Vietnamese/Arabic interface)
- Energy-saving Mode: Built-in timer dimming (preset 10pm-5am 30% brightness, customizable)
6. Installation & Warranty
- Installation Type: Bracket mounting (compatible with pole diameter: 60-140mm, universal for Southeast Asian municipal poles)
- Cable Entry: PG18 waterproof connector (IP68 grade, anti-rodent bite)
- Installation Accessories: Stainless steel mounting bracket, waterproof gasket, hexagon bolts (corrosion-resistant)
- Warranty Period: 5 years (free replacement for quality defects, local after-sales in Jakarta/Bangkok/Dubai)
7. Packaging & Logistics Details
- Package Type: Carton + EPE foam + wooden pallet (moisture-proof treatment for Southeast Asian shipping)
- Package Size (per unit): 480×280×250mm (40W) / 650×310×280mm (120W)
- Gross Weight per Unit: 6.2kg (40W) / 13.5kg (120W)
- Loading Quantity: 220 units (40W, 20ft container) / 180 units (60W, 20ft container) / 100 units (120W, 20ft container)
- Port of Shipment: Ho Chi Minh Port (Vietnam), Port Klang (Malaysia), Shenzhen Port (China)
