1. Design Concept
This LED street lamp embraces the design philosophy of “Architectural Minimalism + Functional Elegance”. Its stark, geometric lines and precise angles transform urban lighting into a piece of modern art—where every edge and module is meticulously crafted to balance aesthetic sophistication with engineering excellence. The integrated LED fixtures merge seamlessly into the sleek metallic structure, proving that utility-driven street lighting can also be a hallmark of contemporary design, harmonizing with smart cityscapes while delivering superior illumination performance.
2. English Name
“Edge Architect” LED Street Lamp
3. Core Selling Points for Southeast Asian Clients
- Design-Driven Urban Identity: Its architectural, minimalist silhouette elevates city landscapes in Southeast Asia, fitting seamlessly into modern commercial zones and smart city initiatives while standing out as a design statement.
- Dual-Module LED Efficiency & Coverage: Equipped with dual high-performance LED modules, it delivers a wide illumination radius (up to 30m) with over 65% energy savings compared to traditional lamps—addressing Southeast Asia’s focus on cost efficiency and sustainability.
- Harsh Climate Resilience: Engineered to withstand Southeast Asia’s humid, tropical climates (IP66 protection) and extreme temperatures (-30℃ to +75℃), ensuring long-term durability, minimal maintenance, and consistent performance in rain, heat, and humidity.
4. Specification Sheet: “Edge Architect” LED Street Lamp
Product Model: EA-LED120-INT
Product Name: Edge Architect LED Street Lamp
Target Markets: Southeast Asia, Middle East

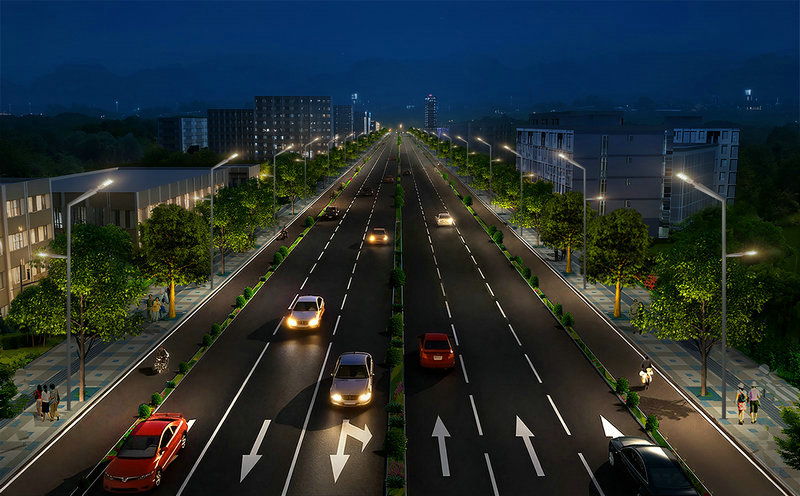

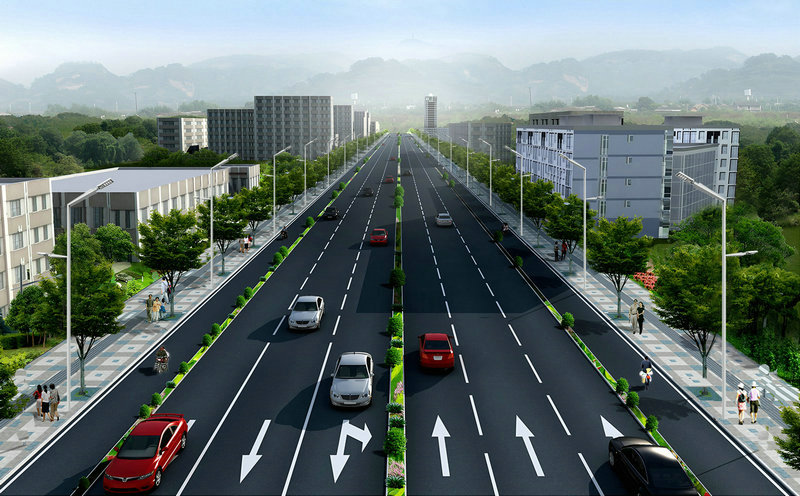

Application Scenarios: Urban arterial roads, commercial districts, smart city projects, industrial parks, municipal landmarks
1. Core Lighting Parameters
| Parameter | Specification |
|---|---|
| Light Source | High-power SMD 5050/3030 LED Modules (High-temperature resistant) |
| Rated Power | 120W (Customizable: 80W/100W/150W/200W) |
| Luminous Flux | 14,400 Lumens (±5%) |
| Color Temperature | 4000K (Natural White, Optional: 3000K Warm White / 5000K Cool White) |
| Color Rendering Index (CRI) | ≥85 (High detail reproduction for urban landscapes) |
| Beam Angle | 120° (Wide coverage for road and area lighting) |
| Lifespan | 50,000 Hours (≈13 years at 10 hours/day operation) |
| Dimming Function | Optional: 0-10V Dimming / DALI Dimming / PLC Dimming (Energy-saving control) |
| Glare Rating (UGR) | <18 (Eye-friendly illumination for pedestrians and vehicles) |
2. Structural & Material Specifications
| Parameter | Specification |
|---|---|
| Overall Height | 10m (Customizable: 8m/12m/14m) |
| Lamp Pole Diameter | Upper: 76mm / Middle: 140mm / Lower: 219mm (Tapered, wind-resistant design) |
| Material | – Lamp Pole: High-strength Aluminum Alloy 6063-T6 (Lightweight, anti-rust) |
| – LED Module Housing: Die-cast Aluminum (Heat dissipation, corrosion-resistant) | |
| Surface Treatment | – Lamp Pole: Polyester Powder Coating (Matte Gray, Customizable: Black, Silver) |
| – LED Module: Anodic Oxidation + Powder Coating | |
| Protection Grade | IP66 (Dustproof, waterproof for sandstorms and heavy rain) |
| Wind Resistance Grade | ≤14-level (Meets ASTM A500 Standards, adapted to Middle East/Southeast Asia wind conditions) |
| Base Type | Flange Base (Size: 500mm × 500mm × 20mm, Compatible with standard foundations) |
| Net Weight | 95kg (Including pole, LED modules, and base) |
3. Electrical & Voltage Specifications (Market-Adapted)
| Parameter | Specification |
|---|---|
| Rated Voltage | Dual Voltage Design: AC 110V-240V ±10% / 50/60Hz (Universal for target regions) |
| Regional Voltage Options | – Southeast Asia: AC 220V/50Hz (Indonesia, Malaysia, Thailand, Vietnam) |
| – Middle East: AC 230V/50Hz (UAE, Saudi Arabia, Qatar, Kuwait) | |
| Power Factor (PF) | ≥0.95 (Energy-efficient, low power loss) |
| Total Harmonic Distortion (THD) | ≤8% (Stable electrical performance, no interference) |
| Driver Type | IP67 Waterproof Constant Current Driver (Efficiency ≥90%) |
| Short Circuit Protection | Built-in Overcurrent / Overvoltage / Short Circuit Protection (Automatic shutdown) |
| Surge Protection | 10kV (Lightning protection for thunderstorm seasons in target regions) |
| Insulation Resistance | ≥2MΩ (IEC 60598 Standard, high electrical safety) |
4. Environmental Performance
| Parameter | Specification |
|---|---|
| Operating Temperature | -30℃ ~ +75℃ (Wide range for Middle East heat and Southeast Asia humidity) |
| Humidity Adaptation | 5% ~ 98% RH (Non-condensing, resistant to high humidity) |
| Corrosion Resistance | Passed 1500-hour Salt Spray Test (ASTM B117, suitable for coastal areas) |
| Anti-UV Grade | UV Resistance Level 5 (Prevents material aging from intense sunlight) |
| Sandstorm Resistance | Sealed Design + Dustproof Grilles (Adapted to Middle East sandstorms) |
5. Certifications & Compliance
| Certification Type | Standards & Certifications |
|---|---|
| Safety Certifications | CE, RoHS, SASO (Saudi Arabia), ESMA (UAE), TISI (Thailand), SNI (Indonesia) |
| Quality Standards | IEC 60598 (Lighting Fixtures), ASTM A500 (Aluminum Poles), ISO 9001 |
| Environmental Standards | RoHS 2.0, ISO 14001 |
6. Warranty & After-Sales Service
- Warranty Period: 5 Years (Free repair/replacement for non-human damage, including LEDs, driver, structure, and modules)
- After-Sales Support: 24/7 Multilingual Technical Support (English, Bahasa Indonesia, Arabic)
- On-Site Service: 48-hour on-site response for key markets (UAE, Saudi Arabia, Malaysia, Thailand)
- Spare Parts: Lifelong Supply of Replacement Parts at Preferential Rates
- Installation Guide: English/Arabic Manual + Video Tutorial
Issuing Date: 2025-11-14
